Aurora Design

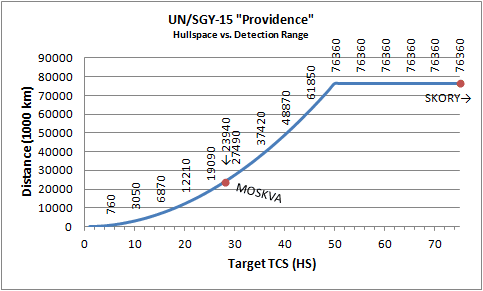

"Curve of TCS vs detection ranges."

Principal Contractor: Voidex
Primary Research: Dr. Scribbleykins (30th May 2034[1])
Resolution: 50 (2500 tons)
Max Range for Target Resolution: 76,360,000 km


Active Sensor Strength: 180   Sensitivity Modifier: 60%
Sensor Size: 15 HS    Sensor HTK: 1
Resolution: 50    Maximum Range vs 2500 ton object (or larger): 76,360,000 km
Range vs 1000 ton object: 12,217,600 km
Range vs 250 ton object: 763,600 km
Chance of destruction by electronic damage: 100%
Cost: €180 million    Crew: 75
Materials Required: 45t Duranium  135t Uridium



Range Chart

Target Crossection vs. Range
Size(HS) Range(km) Size(HS) Range(km) Size(HS) Range(km) Size(HS) Range(km) Size(HS) Range(km)
1 30000 11 3690000 21 13470000 31 29350000 41 51340000
2 120000 12 4390000 22 14780000 32 31280000 42 53880000
3 270000 13 5160000 23 16150000 33 33260000 43 56480000
4 480000 14 5980000 24 17590000 34 35310000 44 59130000
5 760000 15 6870000 25 19090000 35 37420000 45 61850000
6 1090000 16 7820000 26 20640000 36 39580000 46 64630000
7 1490000 17 8820000 27 22260000 37 41810000 47 67470000
8 1950000 18 9890000 28 23940000 38 44100000 48 70380000
9 2470000 19 11020000 29 25690000 39 46460000 49 73340000
10 3050000 20 12210000 30 27490000 40 48870000 50 76360000
