Aurora Design

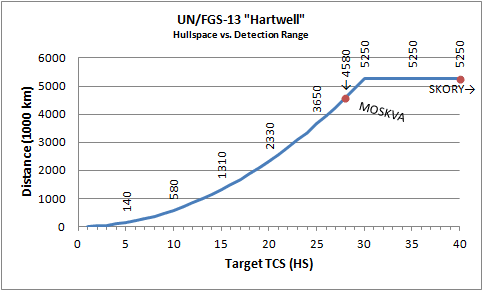

"Curve of TCS vs detection ranges."

Principal Contractor: UNSA
Primary Research: Dr. Barrelfox (November 5th, 2033)
Resolution: 30 (1500 tons)
Max Range for Target Resolution: 5,250,000 km


Active Sensor Strength: 19.2   Sensitivity Modifier: 50%
Sensor Size: 1.6 HS    Sensor HTK: 1
Resolution: 30    Maximum Range vs 1500 ton object (or larger): 5,250,000 km
Range vs 1000 ton object: 2,333,333 km
Range vs 250 ton object: 145,833 km
Chance of destruction by electronic damage: 100%
Cost: €19 million    Crew: 8
Materials Required: 4.75t Duranium  14.25t Uridium


Range Chart

Target Crossection vs. Range
Size(HS) Range(km) Size(HS) Range(km) Size(HS) Range(km) Size(HS) Range(km) Size(HS) Range(km)
1 0 11 700000 21 2570000
2 20000 12 840000 22 2820000
3 50000 13 980000 23 3090000
4 90000 14 1140000 24 3360000
5 140000 15 1310000 25 3650000
6 210000 16 1490000 26 3940000
7 280000 17 1680000 27 4250000
8 370000 18 1890000 28 4580000
9 470000 19 2100000 29 4910000
10 580000 20 2330000 30 5250000
